Applications
The European-standard meat bandsaw is designed to cut a wide range of products, including ultra-low-temperature frozen bone-in meats, boneless meats, poultry, fish, and seafood.

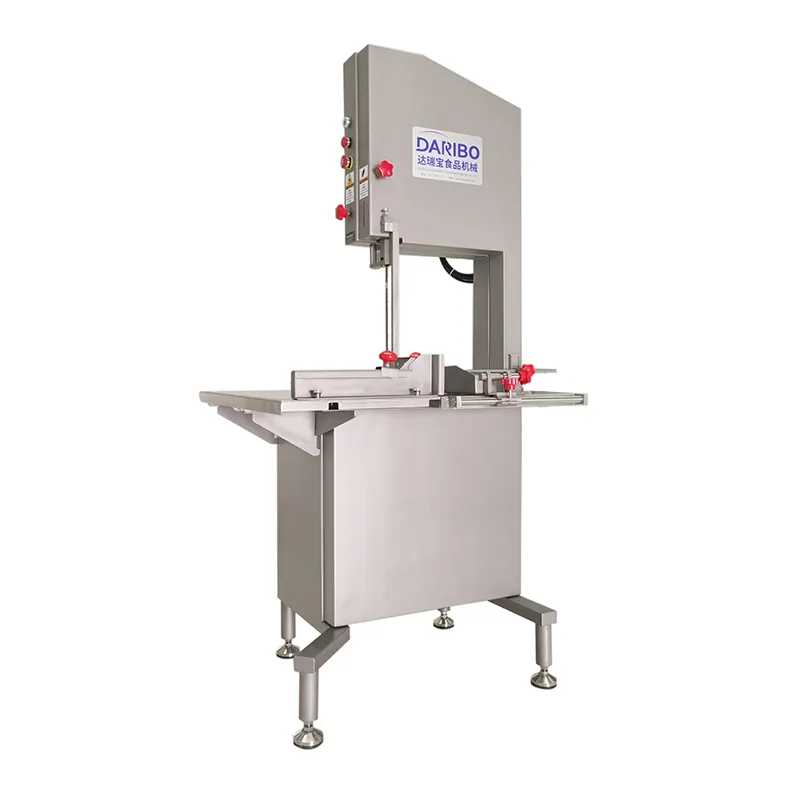

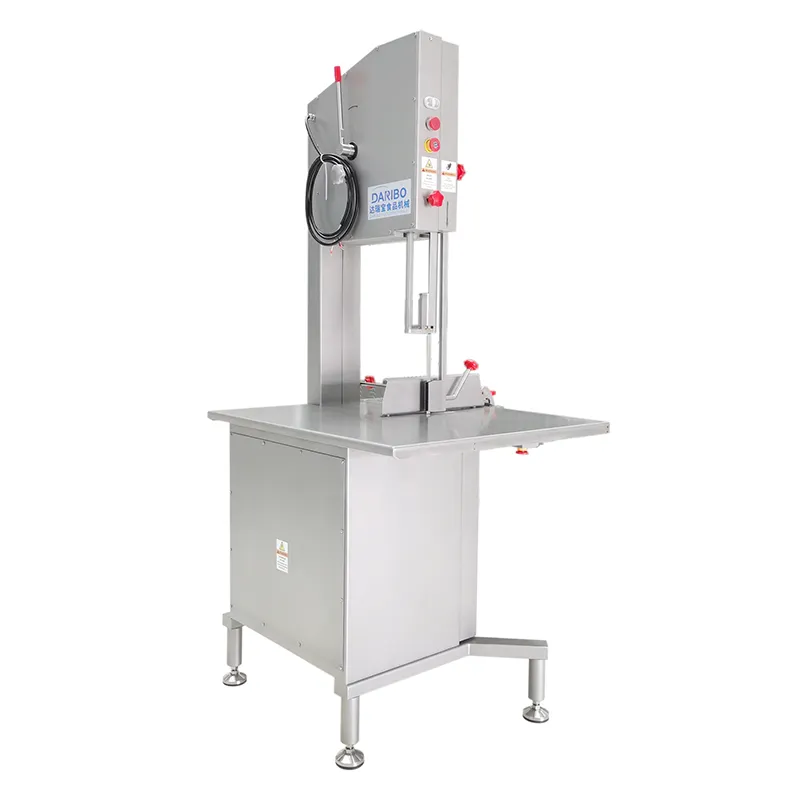

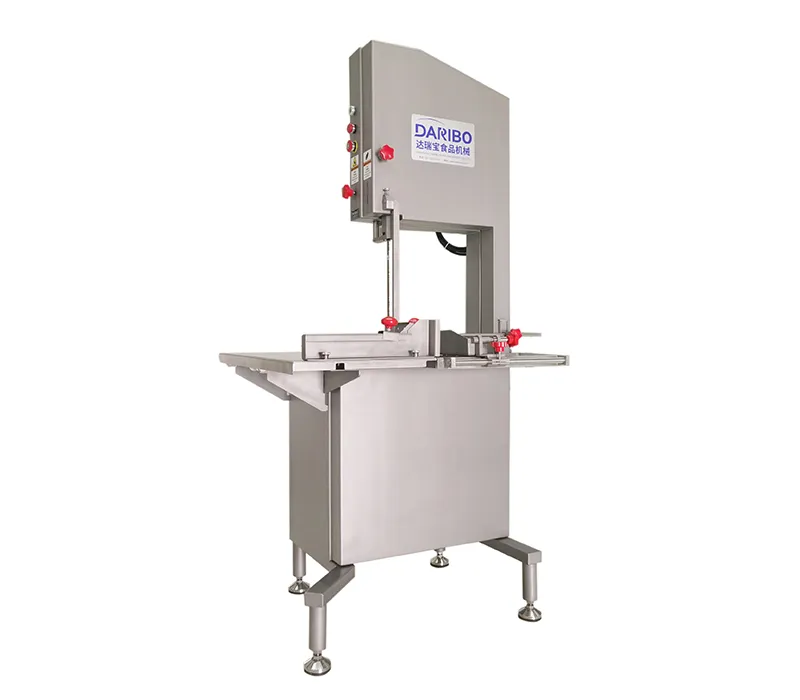

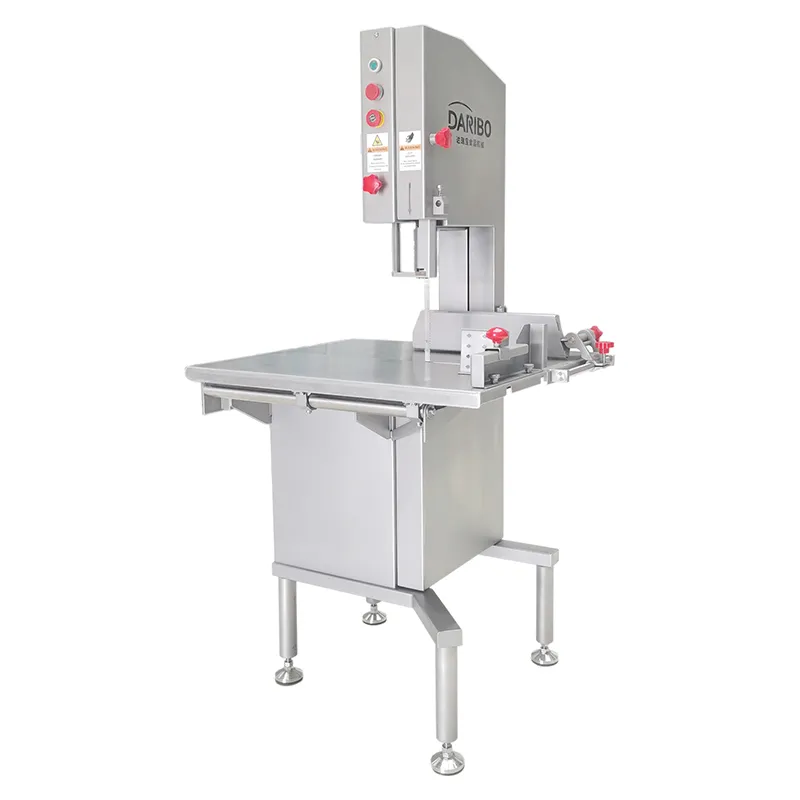

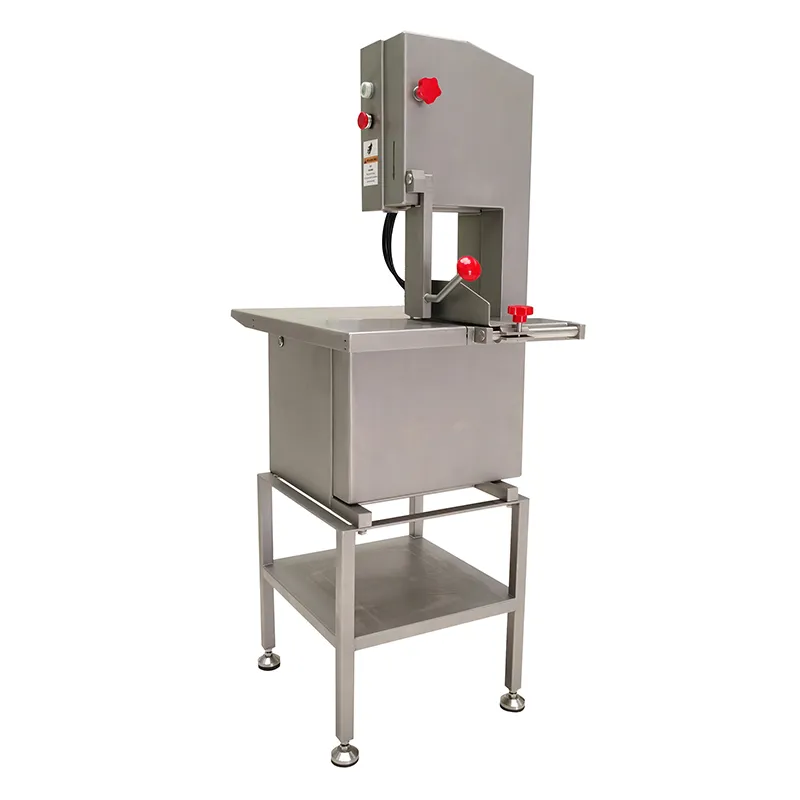

Meat Bandsaw, DRB-JG220
- Model: DRB-JG220
- Voltage: 380V 50Hz
- Power: 1.1kW
- Worktable size (L×W): 620×530mm
- Cutting height/width: 220mm/200mm
- Saw blade length: 1740mm
- Dimensions (L×W×H): 530×695×1470mm
- Weight: 95kg
Meat Bandsaw, DRB-JG330
- Model: DRB-JG330
- Voltage: 380V, 50Hz
- Power: 1.5kW
- Worktable size (L×W): 820×730mm
- Cutting height/width: 330mm/300mm
- Saw blade length: 2590mm
- Dimensions (L×W×H): 890×740×1720mm
- Weight: 165kg
Meat Bandsaw, DRB-JG440
- Model: DRB-JG440
- Voltage: 380V, 50Hz
- Power: 2.2kW
- Worktable size (L×W): 850×930mm
- Cutting height/width: 440mm/400mm
- Saw blade length: 3340mm
- Dimensions (L×W×H): 920×940×1930mm
- Weight: 200kg
Meat Bandsaw, DRB-JG550
- Model: DRB-JG550
- Voltage: 380V, 50Hz
- Power: 2.2kW
- Worktable size (L×W): 850×930mm
- Cutting height/width: 550mm/400mm
- Saw blade length: 3340mm
- Dimensions (L×W×H): 920×950×2040mm
- Weight: 259kg
Features
- Simple operation with automatic blade tensioning and adjustment, ensuring optimal cutting performance and extending blade lifespan.

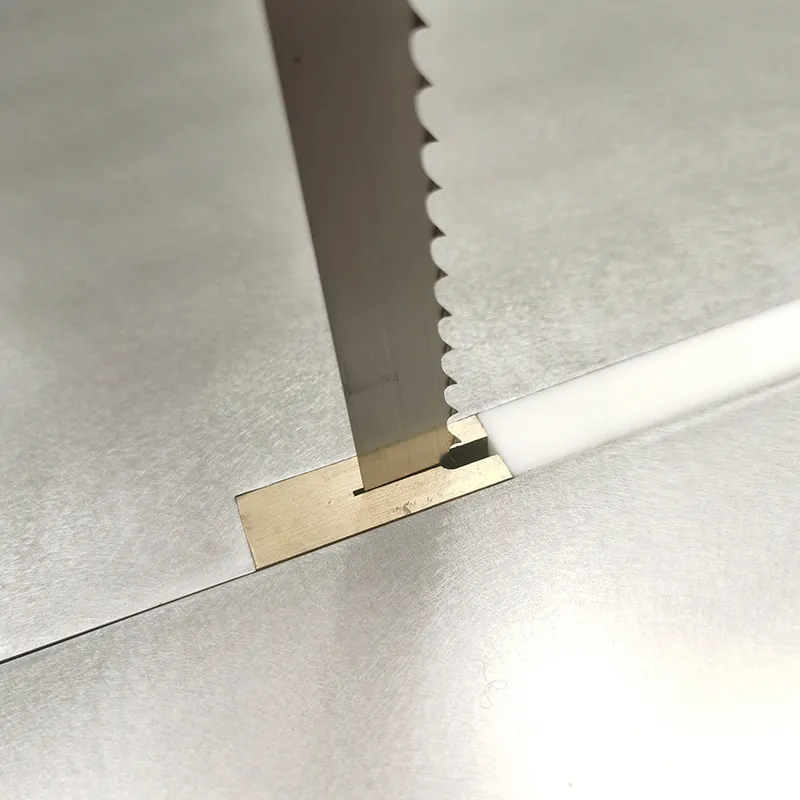

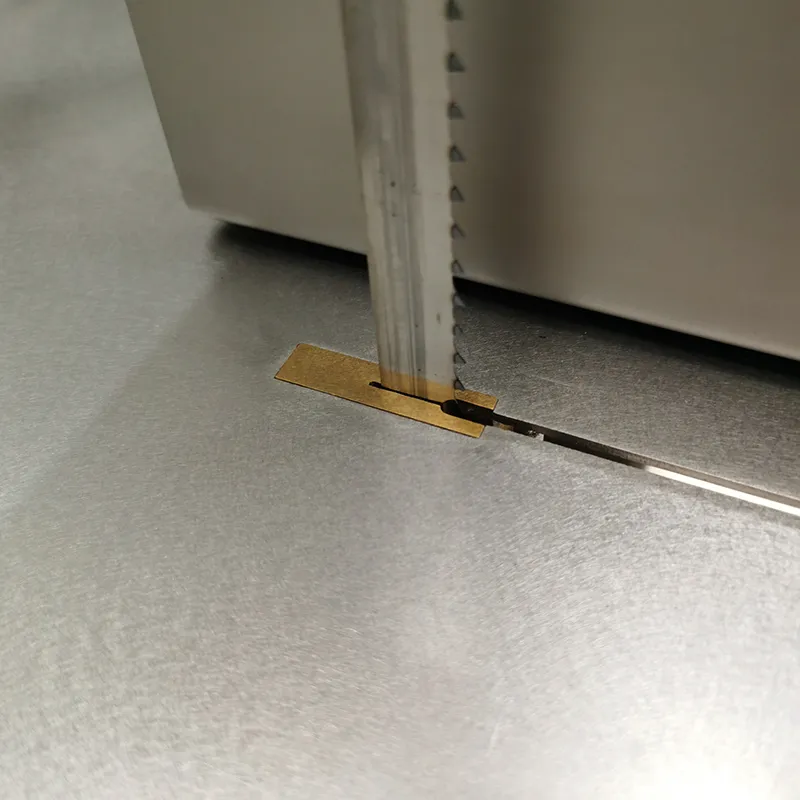

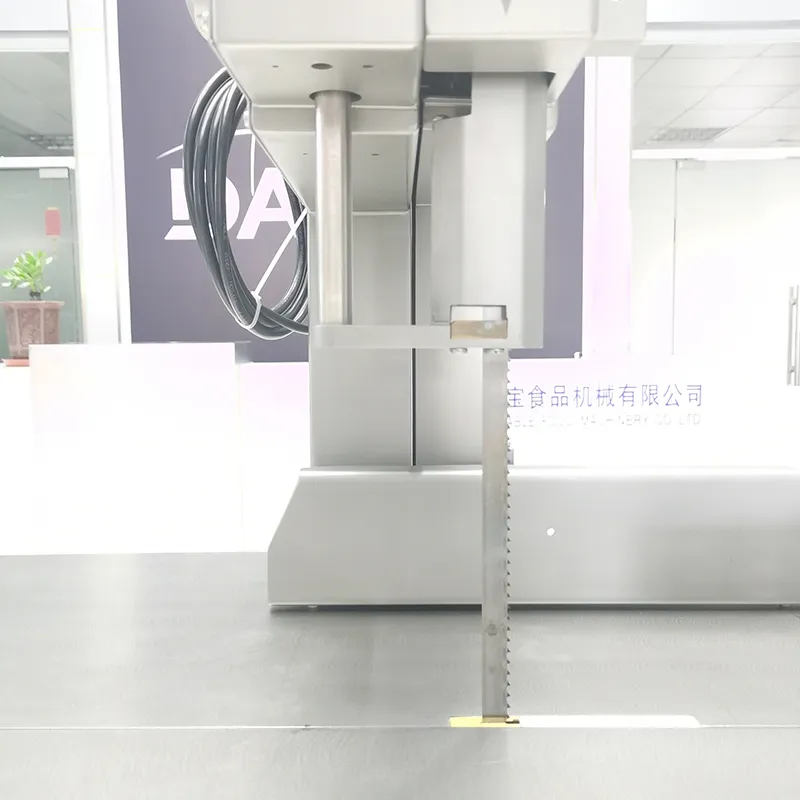

- Patented wear-resistant guide blocks stabilize the blade, reduce vibrations, and minimize waste, increasing final product weight.
- Fitted with a static, maintenance-free braking system stops the blade within 2-3 seconds. The meat bandsaws won’t operate if the door is open, and any door opening during operation triggers an immediate stop.

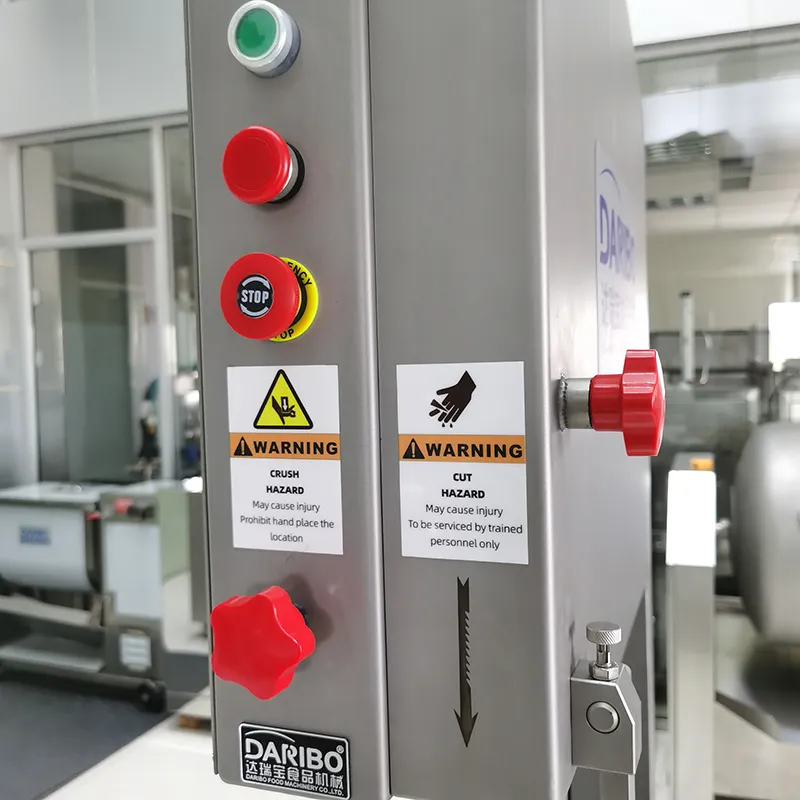

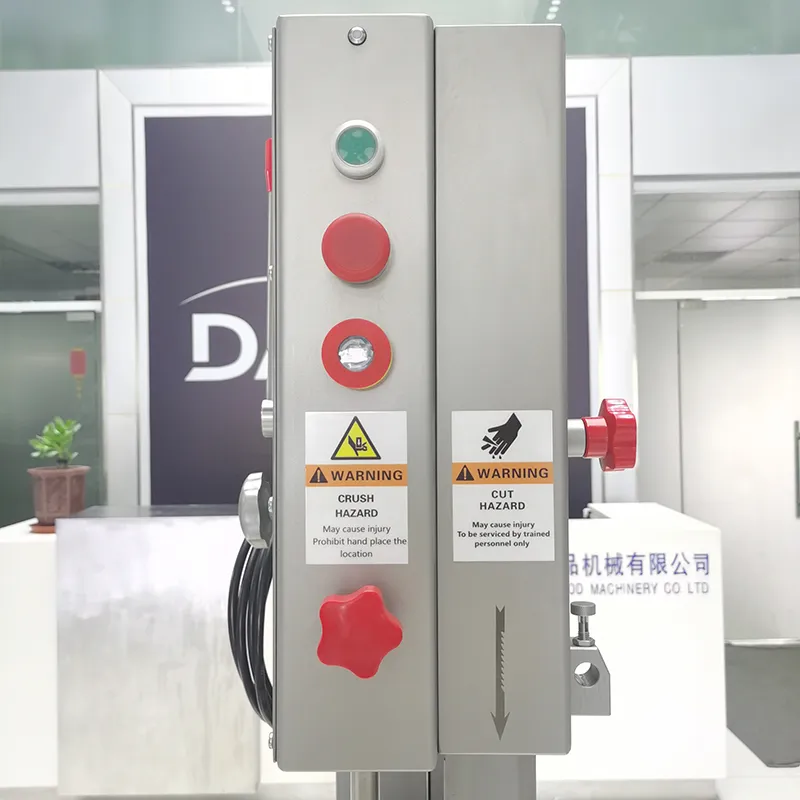

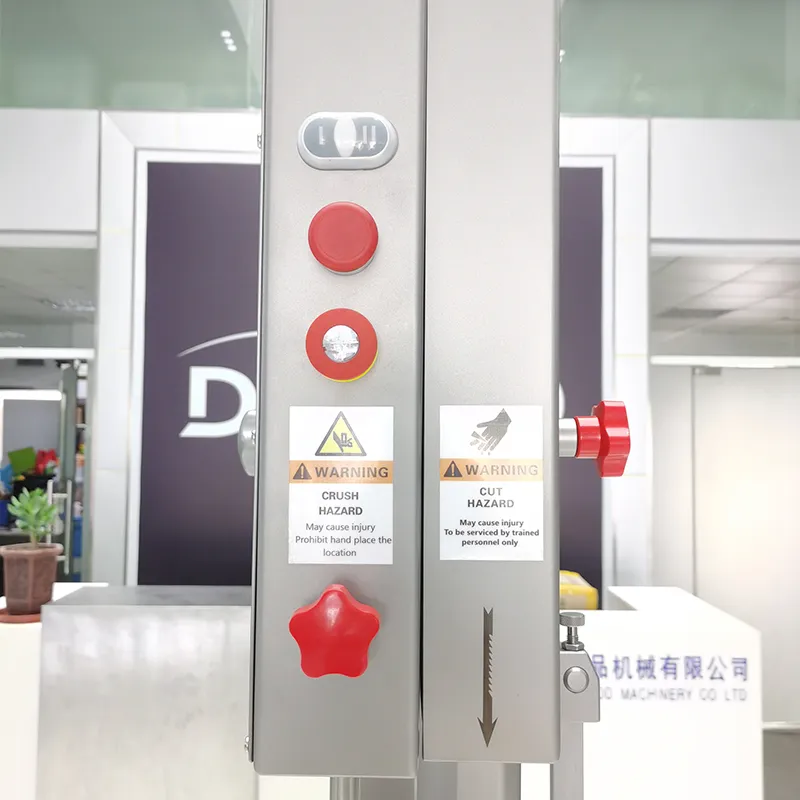

- High-quality custom motor with overheat protection and reliable Omron control components, along with a low-voltage DC safety control system.
- Independent electrical box with integrated wiring harness for easy maintenance and safe VDE-certified cables.

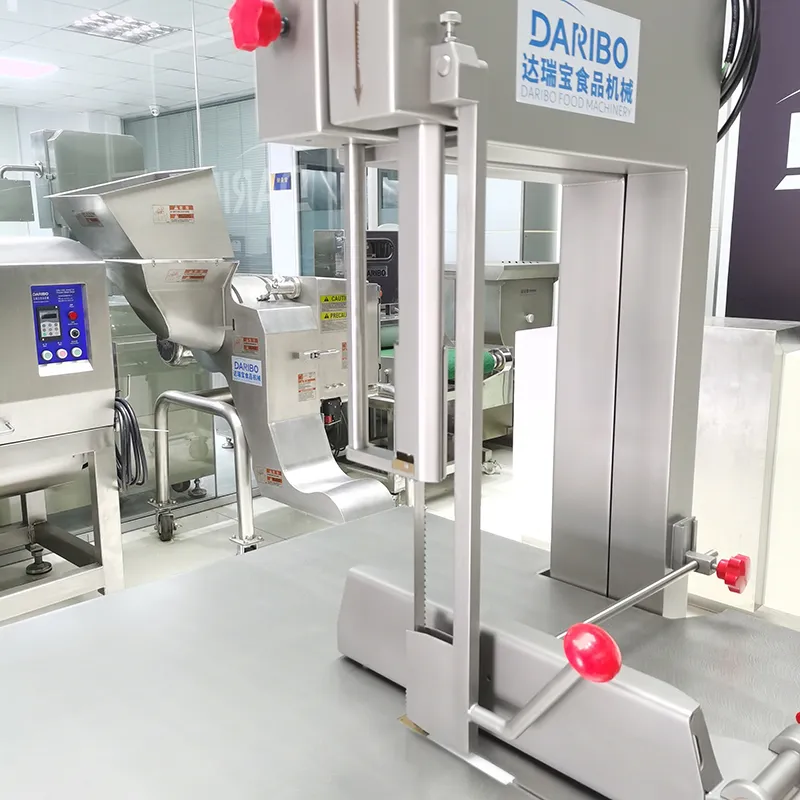

- Comprehensive blade protection during use and cleaning, with anti-fall safeguards on the protective slides to prevent accidents.
- Phase sequence protection prevents the meat saws from starting if the phase sequence is incorrect or a phase is missing.

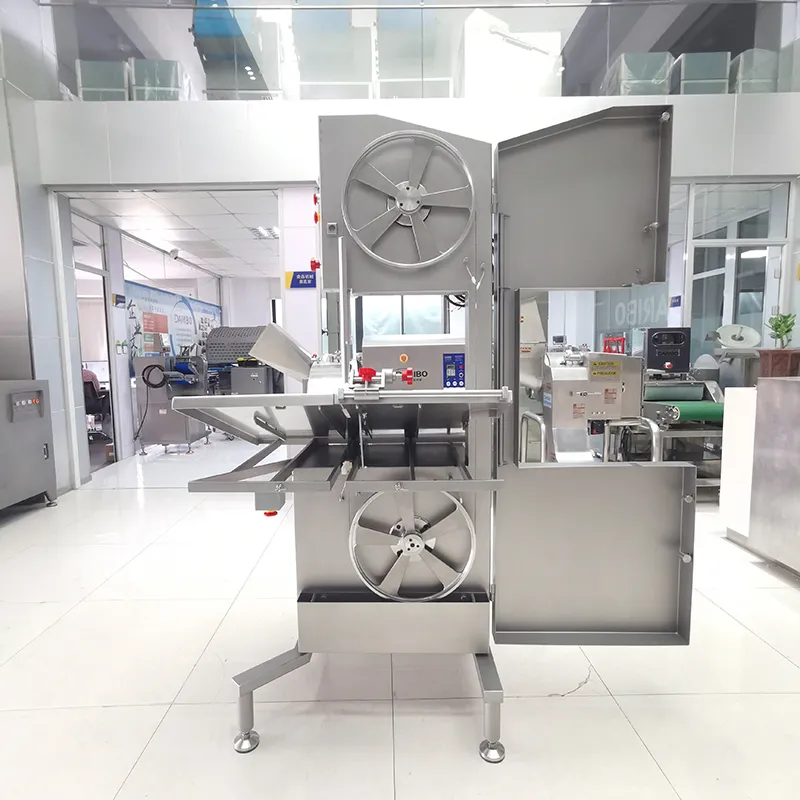

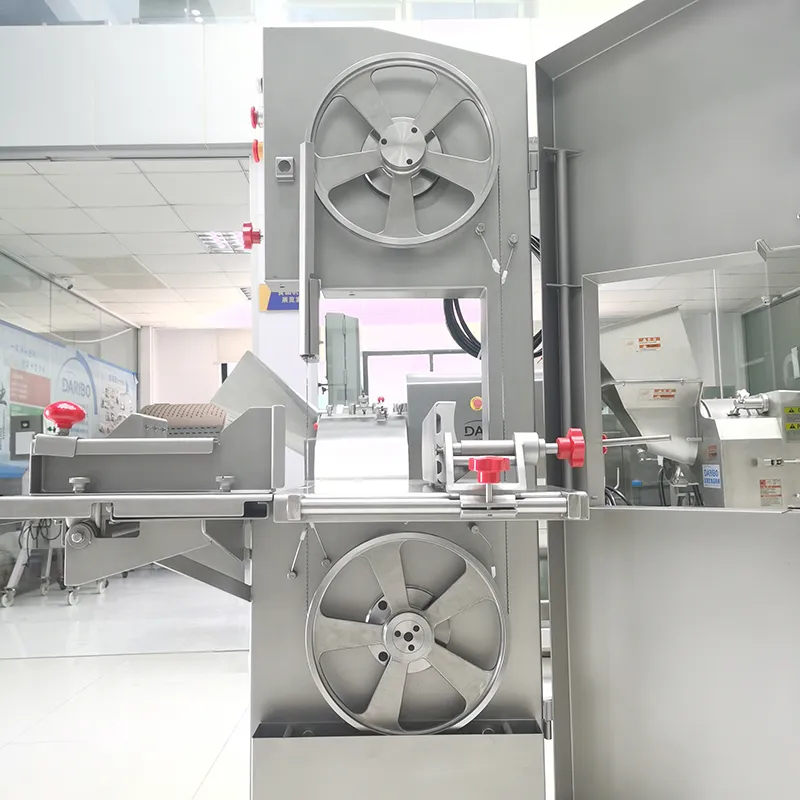

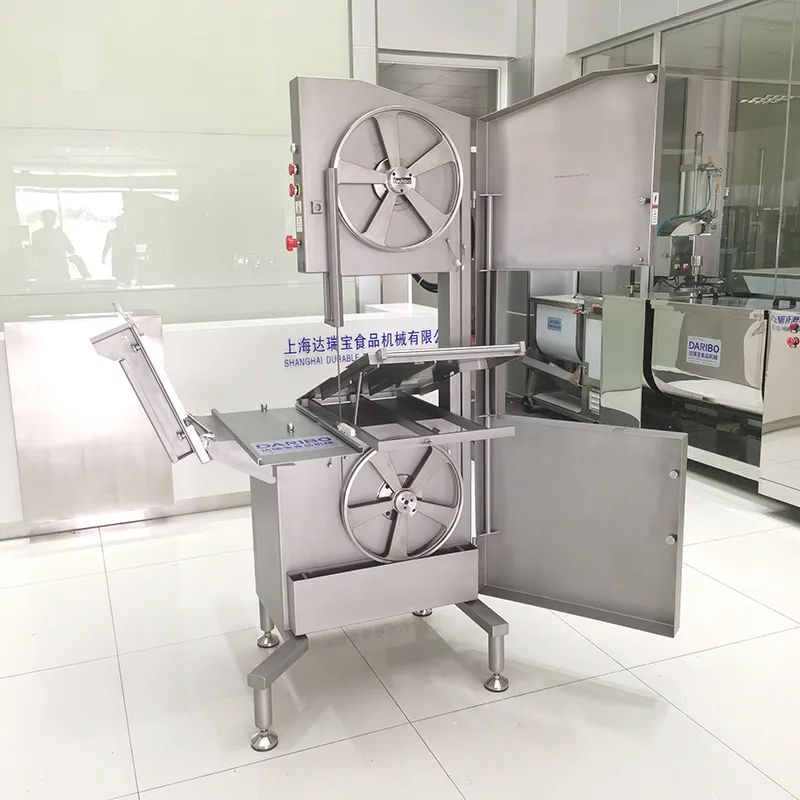

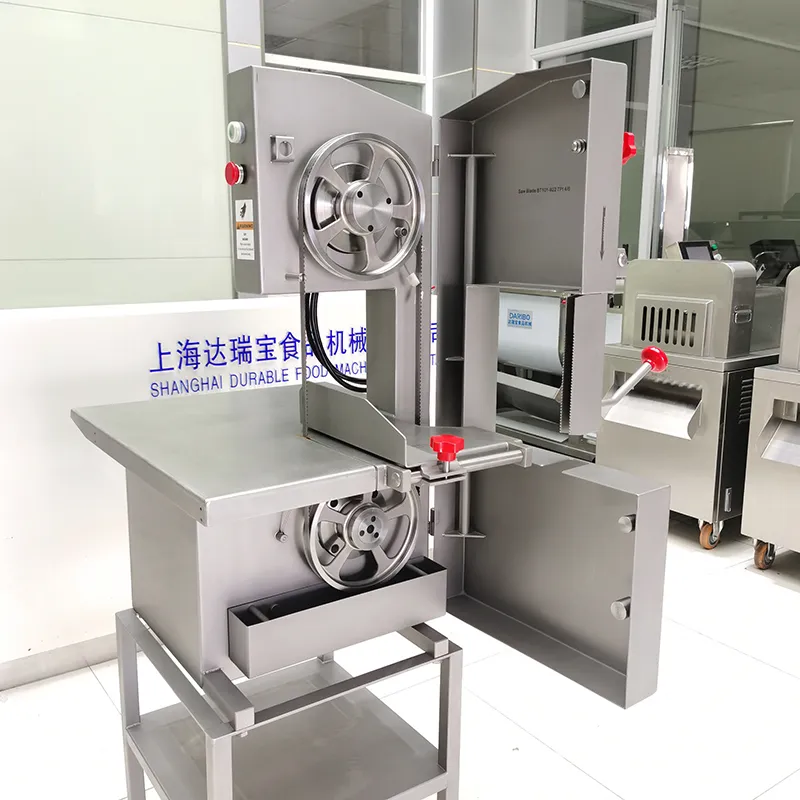

- Installation and maintenance are simple, helping to lower upkeep costs. The cabinet doors open fully, the material tray is removable, and the meat saw can be cleaned thoroughly with water, ensuring effective hygiene.
- Customizable models available for both left-handed and right-handed users.
